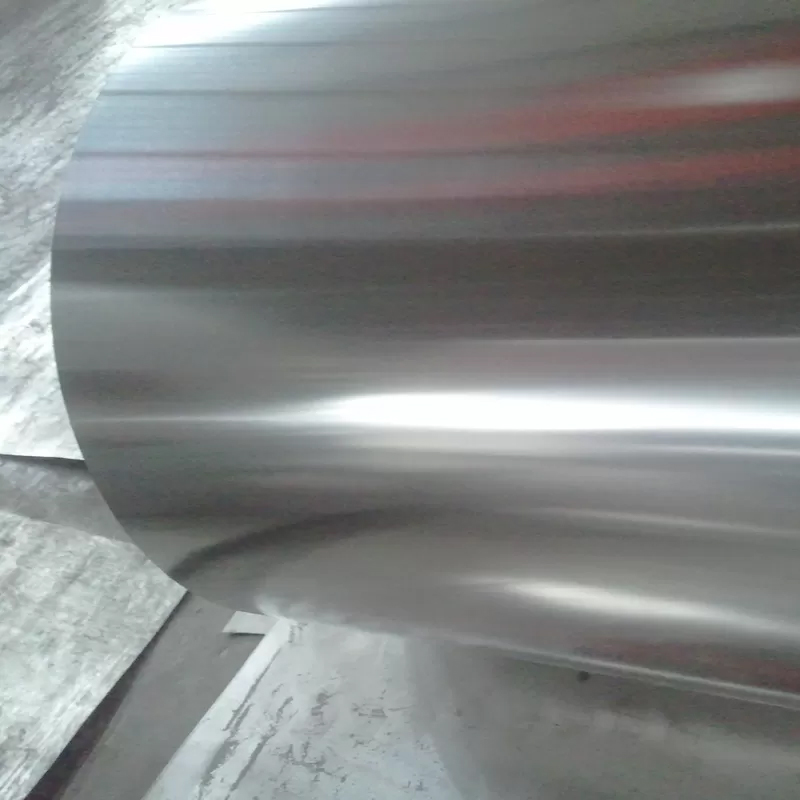

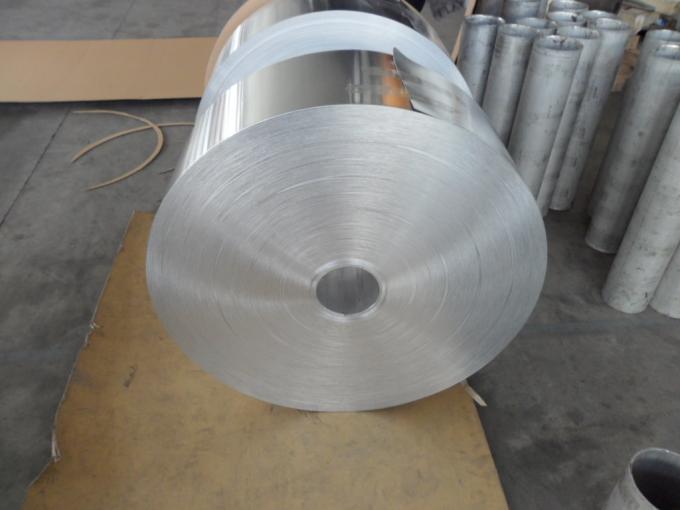

0.02mm Hydrophilic Aluminium Foil Roll Electrode 99.9995% for Composite Pipe
Aluminium foil producing process:
1, Cast Rolling to 7mm
2, Cold Rolling to 0.25mm
3, Foil Rolling to requirement
Hydrophilic aluminum foil occupies 80% volume of the air conditioner aluminum foil, compared with aluminum finstock, the surface of the aluminum foil with corrosion-free and hydrophilic layer, therefore it brings the aluminum foil with function of corrosion-free, anti-mildew agent and no off-flavor; also compared with finstock aluminum foil, its cooling efficient increased 5%, therefore it is more idea air conditioner heat exchange material. It can reduce the noise, guarantee the long & steady hot exchanger results of the air conditioner.
Alloy: 1100/8011
Temper: HO
Thickness: 0.16-0.25mm
width: 100~1500mm
Max. OD: 950mm max
ID:75mm,152mm, 200mm,300mm,500mm
Base Alloy | Base temper | thicknessmm | Tensile strength σb MPa
| Requires non-proportional extension strength N/mm2 | Elongation δ %
| Cupping Value IE mm
|
1050 1100 1200 | 0 | 0.095-0.220 | 85-110 | ≥50 | ≥20 | ≥7.2 |
H22 | 100-130 | ≥65 | ≥18 | ≥6.5 |
H24 | 115-140 | ≥90 | ≥16 | ≥6.0 |
H26 | 125-155 | ≥110 | ≥10 | ≥5.5 |
H18 | ≥160 |
| ≥2 |
|
8011 | 0 | 105-130 | ≥50 | ≥22 | ≥7.5 |
H22 | 115-140 | ≥65 | ≥20 | ≥7.2 |
H24 | 125-150 | ≥90 | ≥16 | ≥6.5 |
H26 | 130-160 | ≥110 | ≥12 | ≥5.8 |
H18 | ≥180 |
| ≥2 |
|
3102 | H24 | 0.095-0.180 | 120-140 | ≥100 | ≥15 | ≥6.0 |
H26 | 130-160 | ≥110 | ≥10 | ≥5.5 |
